OTIS 75 MM Extruded 6063 Aluminium Elevator Door Sill for Double Door System

    Buy cheap OTIS 75 MM Extruded 6063 Aluminium Elevator Door Sill for Double Door System from wholesalers

    Buy cheap OTIS 75 MM Extruded 6063 Aluminium Elevator Door Sill for Double Door System from wholesalers
    • Buy cheap OTIS 75 MM Extruded 6063 Aluminium Elevator Door Sill for Double Door System from wholesalers
    • Buy cheap OTIS 75 MM Extruded 6063 Aluminium Elevator Door Sill for Double Door System from wholesalers

    OTIS 75 MM Extruded 6063 Aluminium Elevator Door Sill for Double Door System

    Ask Lasest Price
    Brand Name : KaiLun
    Model Number : KL-K30533
    Certification : ISO/TS16949,SGS,ROHS...
    Price : Negotiation
    Payment Terms : T/T, L/C...
    Supply Ability : 3000Tons / Month
    Delivery Time : Within 12 days after received your deposit
    • Product Details
    • Company Profile

    OTIS 75 MM Extruded 6063 Aluminium Elevator Door Sill for Double Door System

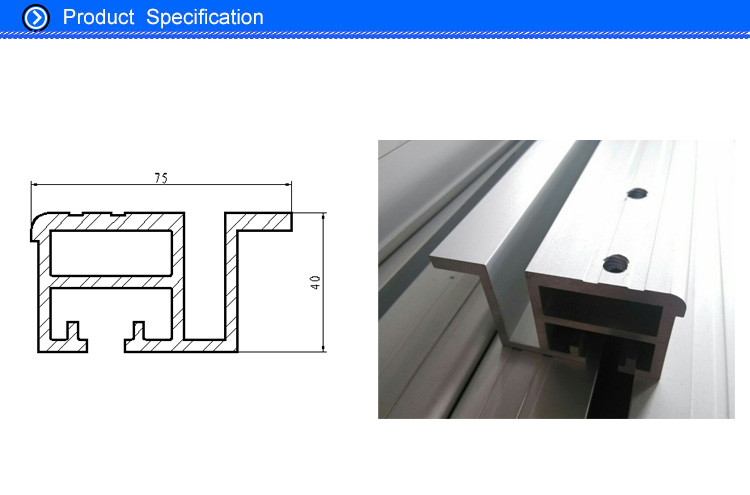

    OTIS 75 MM Type Extruded Aluminium Landing Door Sill for Elevator Double Door System


    Product Detail:

    1. Name: elevator landing door sill
    2. Size: 75*40mm
    3. Weight: 2.60kg/m
    4. Material: 6005, 6063, 6061, etc.
    5. Surface Treatment: silver anodizing
    6. Coating Thickness: 10 - 15 um
    7. Length: As per your needs

    Applications:

    Aluminium Elevator Door Sill

    1. for elevator door parts

    2. for elevator door sill

    3. for elevator sill angle

    4. for lift door sill

    5. for elevator threshold

    6. for escalator handrail

    7. for elevator landing door / cabin door

    8. for OTIS elevator parts

    9. for elevator door sill system













    Chemical Composition of 6000 Series:

    Alloy

    Si

    Fe

    Cu

    Mn

    Mg

    Cr

    Zn

    Ti

    Impurity

    Al

    Unit

    Total

    6063

    0.2-0.6

    <0.35

    <0.1

    <0.1

    0.45-0.9

    <0.1

    <0.1

    <0.1

    <0.05

    <0.15

    Surplus

    6061

    0.4-0.8

    <0.7

    0.15-0.4

    <0.15

    0.8-1.2

    0.04-0.35

    <0.25

    <0.15

    <0.05

    <0.15

    Surplus

    6005

    0.6-0.9

    <0.35

    <0.1

    <0.1

    0.4-0.9

    0.1

    <0.1

    <0.1

    <0.05

    <0.15

    Surplus

    6060

    0.3-0.6

    0.35-0.6

    0.1-0.3

    <0.1

    <0.1

    <0.15

    <0.05

    <0.1

    <0.05

    <0.15

    Surplus



    Processing Machinery:

    Machine Name

    Brand & Model No.

    QTY

    Years Used

    Condition

    CNC Machining Center

    No Information

    1

    5

    Acceptable

    Bench Drilling Machine

    Zhejiang Xiling

    8

    10

    Acceptable

    Punching Machine

    Wuxi Lanling

    13

    10

    Acceptable

    Special Punching Machine

    Wuxi Lanling

    4

    10

    Acceptable

    Ends Milling Machine

    Wuxi Lanling

    3

    10

    Acceptable

    Digital Display Double Head Cutting Machine

    Wegoma

    13

    10

    Acceptable

    Open Back Inclinable Press

    Yangli Group

    34

    10

    Acceptable

    Plate Bender

    Yangli Group

    15

    8

    Acceptable













    aluminium elevator landing door sill
    Introduction:

    Jiangsu Karen Aluminum Co.,Ltd is a large-scale professional manufacturing company,specialized in aluminium extrusions & fabrication for Top 500 Enterprises. We focus on various aluminum shapes, aluminum door threshold, elevator door sill, solar panel frame, aluminium beams, aluminium louvers, aluminium skirting board, aluminium frame for HVAC systems, industrial profiles since 1985.

    We are Gold Supplier for TOP 500 Enterprise.Some as below.
    - TRINA SOLAR / RENESOLA / SOLARTRON PUBLIC / SHARP (Solar Industry)
    - OTIS / Thyssenkrupp / Schindler Group / Westinghouse(Elevator&Escalator Parts)
    - Carrier / Climaveneta / Mammoth Inc.(HVAC Profile)


    Factory Corner:



    Waiting for your visit to check every detail.
